A215 DOUBLE-END TENONER
The A215 Double-End Tenoner profiles and sands both edges of hardwood parts in one continuous pass. Each side of the machine is comprised of two shaping units that make the same cut to prevent end grain tear-out. The first shaper rotates with the feed direction, and as the substrate passes, the station jumps in to make a short but full depth cut on the substrate’s trailing edge. The second unit rotates against the direction of feed to finish the cut started by the first shaper. Jump shapers are equipped with a mechanical switch and PLC to time the jump which automatically adjusts for part size and feed speed of the machine.
- Accommodates up to 4 shaping and sanding stations
-
A215 DOUBLE-SIDE COPE SHAPER
The A215 Double-Side Cope Shaper is equipped with mirrored shaping stations on either side. The first station has the option to be configured to jump in or out during the cut and includes automatic CNC control of the horizontal axis for the best possible repeatability.
- Compact Design
- Fast Changeover (no backer blocks required)
- Hopper feeder
- Fastest throughput in the industry, one part per second
- Labor savings with automatically inserts space balls (option)
- Consistently accurate servo jump station addresses blowout
- Capable of producing a minimum part length of 4”
- Return belt system (option)
-
A1517 SINGLE-END TENONER
The A1517 Single-End Tenoner can accommodate five or more stations with identical HSK-63F spindle motors, to be used in any configuration of shaping and sanding. All spindles are reversing and set up to rotate with or against the direction of feed with a jump feature on the first station.
- Accommodates five or more shaping and sanding stations
- Spindles can be configured with Quick Change, HSK, or stacked tooling
- Fully automatic tool changers, each tool changer accepts 5 or 7 tool holders with 15 to 21 individual tools (option)
- Automatically scales contours
- Double V track (holds tolerances over time)
- Capable of processing all components of a five piece cabinet door
-
A1515 SINGLE-END TENONER
The A1515 Single-End Tenoner can accommodate four stations with identical HSK-63F spindle motors, to be used in any configuration of shaping and sanding. All spindles are reversing and set up to rotate with or against the direction of feed with a jump feature on the first station. The stations can be horizontally locked for straight shape/sand or CNC controlled to shape/sand pre-programmed contours (arches).
- Accommodates up to four shaping and sanding stations
- Ball insert station with servo-controlled axis will insert space balls in a contoured part (option)
- 17” wide chain with 17” wide dog bars for coping narrow parts (option)
-
A517 SINGLE-END TENONER
The A517 Single-End Tenoner can accommodate five or more shaping/sanding stations. Clockwise and counter-clockwise rotations are used on specific shapers to eliminate rejects and produce the highest quality finished part. A PLC controlled servo motor drives the shaper horizontally as a function of the transporter speed to produce a pre-programmed contour.
- Configured to accommodate five or more shaping and sanding stations
- Spindles can be configured with Quick Change, HSK, or stacked tooling
- Can be configured with servo-controlled horizontal axis on all stations, combined with Quick Change spindles requiring no setup time between profiles
- Model A517ED, equipped with dual feed chain and double hold-down; designed to process entry door components
-
A515 SINGLE-END TENONER
The A515 Single-End Tenoner can accommodate four shaping/sanding stations. Clockwise and counter-clockwise rotations are used on specific shapers to eliminate rejects and produce the highest quality finished part. A PLC controlled servo motor drives the shaper horizontally as a function of the transporter speed to produce a pre-programmed contour.
- Configured to accommodate up to four shaping and sanding stations
-
A117 SHAPER SANDER
The A117 Shaper Sander can accommodate five or more shaping/sanding stations. Clockwise and counter-clockwise rotations are used on specific shapers to eliminate rejects and produce the highest quality finished part.
- Configured to accommodate five or more shaping and sanding stations
- Spindles can be configured with Quick Change, HSK, or stacked tooling
- Jump shaper system
- Ever-square infeed guide
- SS64 Size & Square attachment for single-end edge machines; easily size and square rough-cut substrates with pneumatically actuated squaring bar (option)
- Labor savings (eliminate hand sanding)
- Shapes pre-cut contours
-
A115 SHAPER SANDER
The A115 Shaper Sander can accommodate four shaping/sanding stations. Clockwise and counter-clockwise rotations are used on specific shapers to eliminate rejects and produce the highest quality finished part. The A115 Shaper Sander can be configured with one to two shaping units to shape outside edges and raised panels. When equipped with two, the first shaper is reversible and rotates with the feed direction, and as the substrate passes, the station jumps in to make a short but full depth cut on its trailing edge to prevent wood grain tear-out.
- Configured to accommodate up to four shaping and sanding stations
-
A5615 AUTOMATIC DOUBLE-SIDE COPE & STICK SYSTEM
The Voorwood A5615 Automatic Double-Side Cope & Stick System will process stiles and rails without operator input.
It has the following features:
- Designed for shaker door production
- First single machine to automatically profile, size & square stiles and rails
- Hopper fed random length parts for kitchen at a time production
- Automatically measures and sizes each rail with zero operator input
- Processes both cope cuts at the same time, ensuring a square part
- Sizes rails and stiles to width and ensures both long sides are parallel
- Automatic space ball inserter (optional)
- High production (4,000 parts/shift)
-

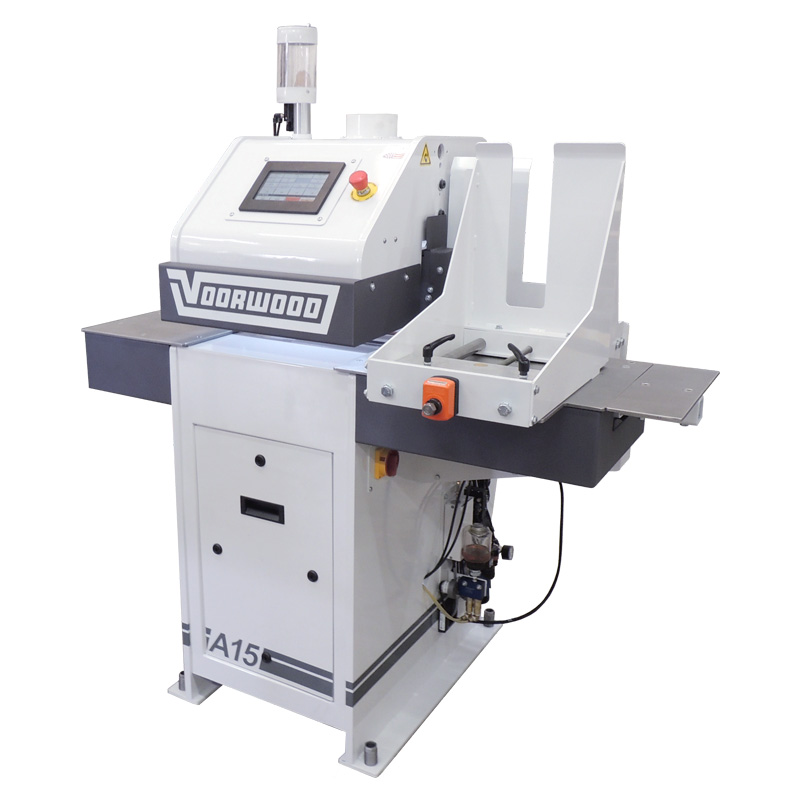

A15 STILE & RAIL SHAPER
The A15 Stile and Rail Shaper straight cuts inside edges on the stiles, rails, and the outside edges (long-grain). This is the only machine on the market with the capability of shaping small parts. Spindles can be configured with quick change, HSK, or stacked tooling.
- Smallest parts in the industry (1.44″x3.5″)
- Straight cuts inside edges on stiles, rails
- Automatic hopper feed
- Labor saving – adjustable space ball inserter (option)
- Spindles can be configured with Quick Change, HSK, or stacked tooling
-
A26 COPE SHAPER
The A26 Cope Shaper is designed to shape single or multiple parts in one pass. Each shaping station is equipped with a precision-balanced drive motor and spindle. The counter-rotating spindles cut against the direction of feed. Spindles can be configured with quick change, HSK, or stacked tooling.
- Capable of producing 11 parts per minute
- Backer blocks prevent blowout
- Spindles can be configured with Quick Change, HSK, or stacked tooling
- Capable of processing any part length
- Auto Feed
-

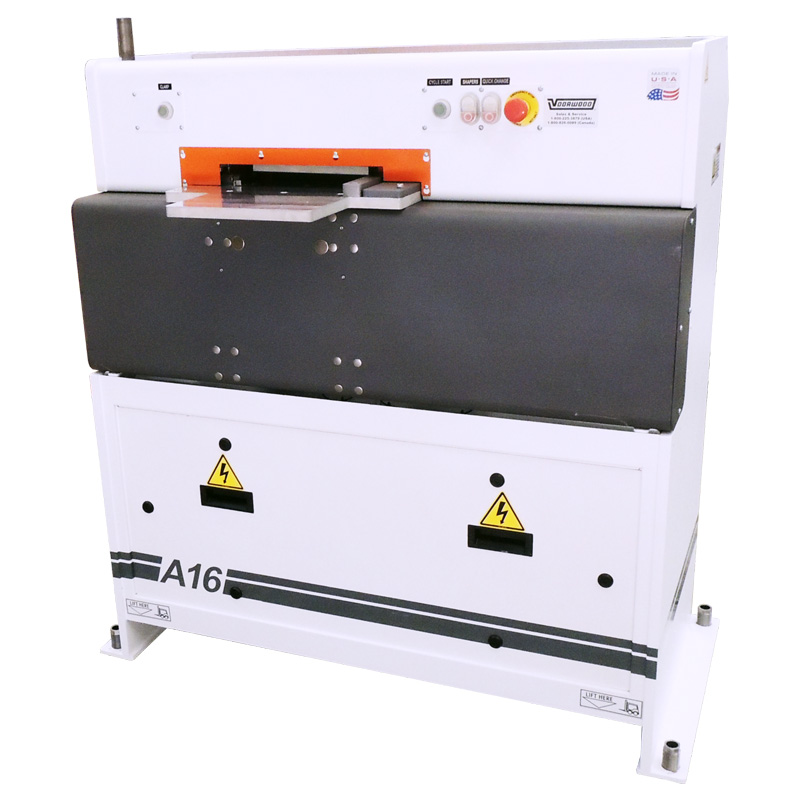

A16 COPE SHAPER
The A16 Cope Shaper with single side dual spindle is designed to shape single or multiple parts in one pass. The cope shaper has an average cycle time of 4 seconds making it a highly productive machine. Designed to run either S4S or profiled parts without the need for a backer block for eliminating tear-out.
- Average cycle time of 4 seconds
- S4S or profiled parts without a backer block eliminating tear out
- Spindles can be configured with Quick Change or HSK tooling
- Capable of processing any part length
