A11 TABLE SHAPER SANDER
The A11 Table Shaper Sander shapes all components of cabinet doors, parts of drawers, and other wooden components and simultaneously sands the desired profiles, sizes the substrate to the desired finished dimensions, squares the substrate as all four sides are being processed, and processes straight edges as well as contoured shapes using a template system.
- Capable of processing all components of a five piece cabinet door
- Shapes and sands the edges of wood components
- The fastest manually-operated machine
- Quick change tooling
- Processes straight edges as well as curved edges using a template system
- Squares the substrate as all four sides are being processed
- Sizing arm sizes the substrate to the desired finished dimension
-
A15 MITER LOCK MACHINE
The A15 Miter Lock Machine shapes the edge of solid wood and plywood parts in one pass to produce a precision lock miter joint, thus eliminating the doweling process. It has the following features:
- Shapes precision miters at any angle between 87° up to 160°
- Changes the mating profile in five seconds
- High production
- Single work station (labor-saving)
- No doweling
-

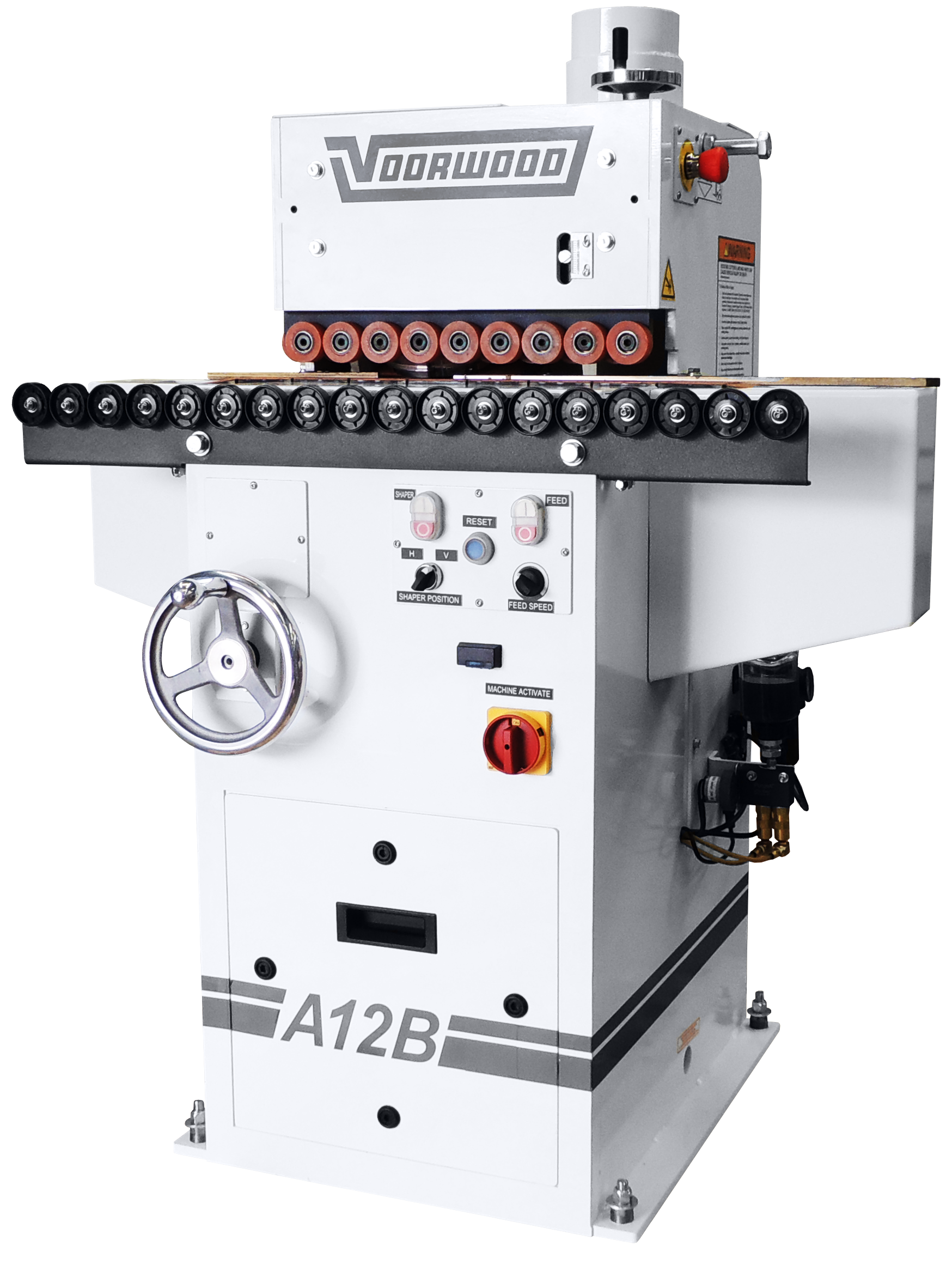

A12 MITER LOCK SHAPER
The A12 Miter Lock Shaper shapes the edge of solid wood and plywood parts in one pass to produce a precision lock miter joint. Eliminates the doweling process.
- Shapes precision miters any angle between 90° to 150°
- Machine only requires one cutter to mill both sides of the miter lock joint
- Single work station (labor saving)
- No doweling
-

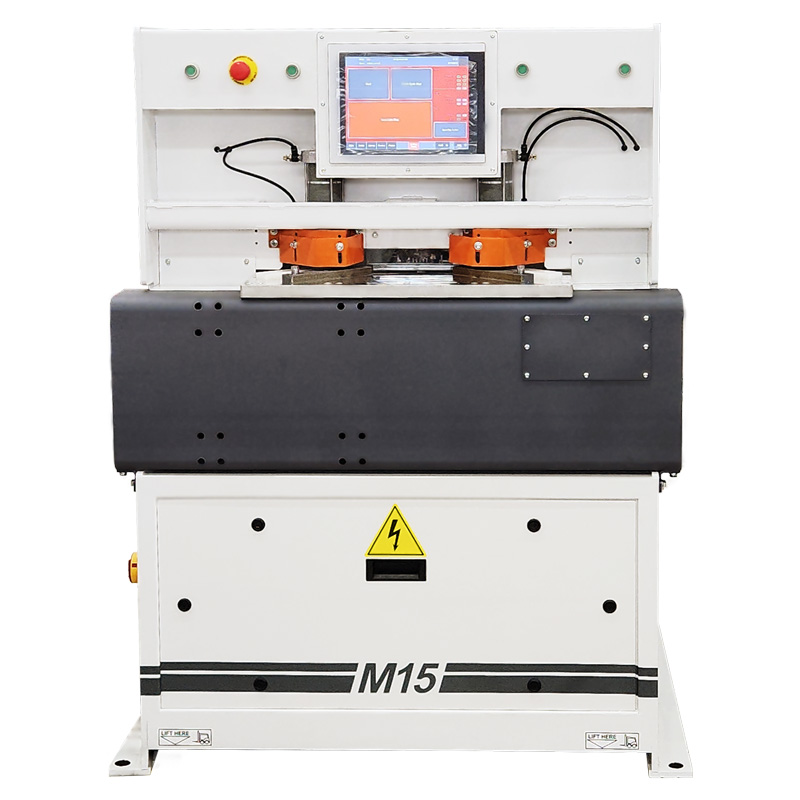

M15 MITER MACHINE
The M15 Miter Machine’s primary application for this machine is for miter cabinet door frames. Parts can be quickly transferred from left to right. They are mortised on the left side of the machine and tenoned on the right. The machine can also mill the slots.
- Only miter machine to address dust collection
- Locates on inside or outside edges addressing variance in part width
- Locates parts face down addressing material thickness variance
- Converts to mortise and tenon face frames
- Accommodates a maximum part size any length x 5″ wide x 1.50″ thick
- Up to 420 complete frames per shift
- Manual sizing feature (option)
-
L217 DOUBLE-END FOILER
The L217 Double-End Foiler profiles, sands, and applies dry-transfer finishing foil to both edges of MDF parts in one continuous pass. Designed for quick and easy changeover. Foiling stations equipped with 8˝ diameter foil wheels, non-contact sensors, and ovens for automatic temperature control.
- Accommodates up to seven stations per side
- Top and bottom score saws, groove station, shaping station, dual sanding station and dual foiling station (up to four)
- Post clean stations (option)
- L215 model available (up to 4 stations)
-
L117 EDGE FOILER
The L117 Edge Foiler shapes the profile, sands it smooth and applies the dry-transfer finish foil on MDF in a single continuous process. Stock is transported through the machine by a bottom-feed chain with special pads that grip the stock securely while it passes through the stations.
- Accommodates up to seven stations
- Shaping station, dual sanding station and dual foiling station (up to four)
- Score saws and post cleaner stations (option)
- Groove saw station (option)
-
L115 EDGE FOILER
The L115 Edge Foiler shape the profile, sand it smooth and apply the dry-transfer finish foil on MDF consecutively in one continuous process. Stock is transported through the machine by a bottom-feed chain with special pads that grip the stock securely while it passes the stations. The L115 Edge Foiler has digital readouts and micro-point tilt at the stations and digital readout on the ever-square infeed guide, this machine is designed for easy setup and repeatable tool change between profiles.
- Accommodates up to four stations
-
L79 END FINISHER
The L79 End Finisher is designed to precisely cut MDF mouldings to length, then sand both ends. Next, to complete the one-pass process, an applicator wheel with automatic heat control applies the transfer finish. A louver end foiler is a production-oriented machine designed for reliability and operator convenience using a hopper feeder. Set up time is kept to a minimum by many special Voorwood features.
- Endless belt hold-down and bottom chain with pop-up lugs
- Fully adjustable bottom scoring precisely cuts MDF parts to length
- Sands both ends of parts, preparing the surface for finishing
- Applicator wheel with automatic heat control
- Hopper feeder (option)
-
P78 PLOUGH FOILER
The P78 Plough Foiler cuts a single plough (bluff cut) to the desired profile in an MDF drawer front or similar component and then sands and applies transfer finish to the plough, all in one pass. It does not require handwork, spraying, wiping, clean-up, or drying time.
- Pattern changeover accomplished in minutes
- Equipped with climb-cut scoring
- Shape station incorporates an electronically balanced, precision spindle
- After sanding, final finishing of the transfer process; no trimming
-
LUR27 CONVERTER LAMINATOR
The LUR27 Converter Laminator (Film to Film Laminator) applies transfer-finishing foils to the surface of PVC. Hot-stamp foils have the look of real woodgrain finishes, marbles, granites, solid colors, and geometric designs. The laminator has two heated foil applicator stations, which are incorporated in a heavy-duty machine frame for durability and precision.
- Foil unwind station w/tension control
- Substrate unwind station w/auto tension
- Foil rewind station w/stripper roll
- Single substrate rewind station
- Spreader roller
- Nip rolls run cold or heated
-
HML 12 PROFILE LAMINATOR
The HML-12 Profile Laminator applies hot melt adhesives to the back of the various paper, foil, or vinyl webbings, and wraps the webbing around all types of profiled wood, extruded plastics, and metal substrates.
- High production speeds with 360° wrapping
- Quick change cartridge system
- EVA or PUR adhesive application
- Pre-heating of both laminate and substrate
- Dual unwind with automatic splicer
- Adjustable slot nozzle
- Substrate cleaner pre-cleaner
- Spring loaded and quick disconnect precision rollers
-
HML 8 PROFILE LAMINATOR
The HML-8 Profile Laminator applies hot melt adhesives to the back of various paper, foil, or vinyl webbing, and wraps the webbing around all types of profiled wood, extruded plastics and metal substrates.
- Accommodates a maximum part width of 8″
